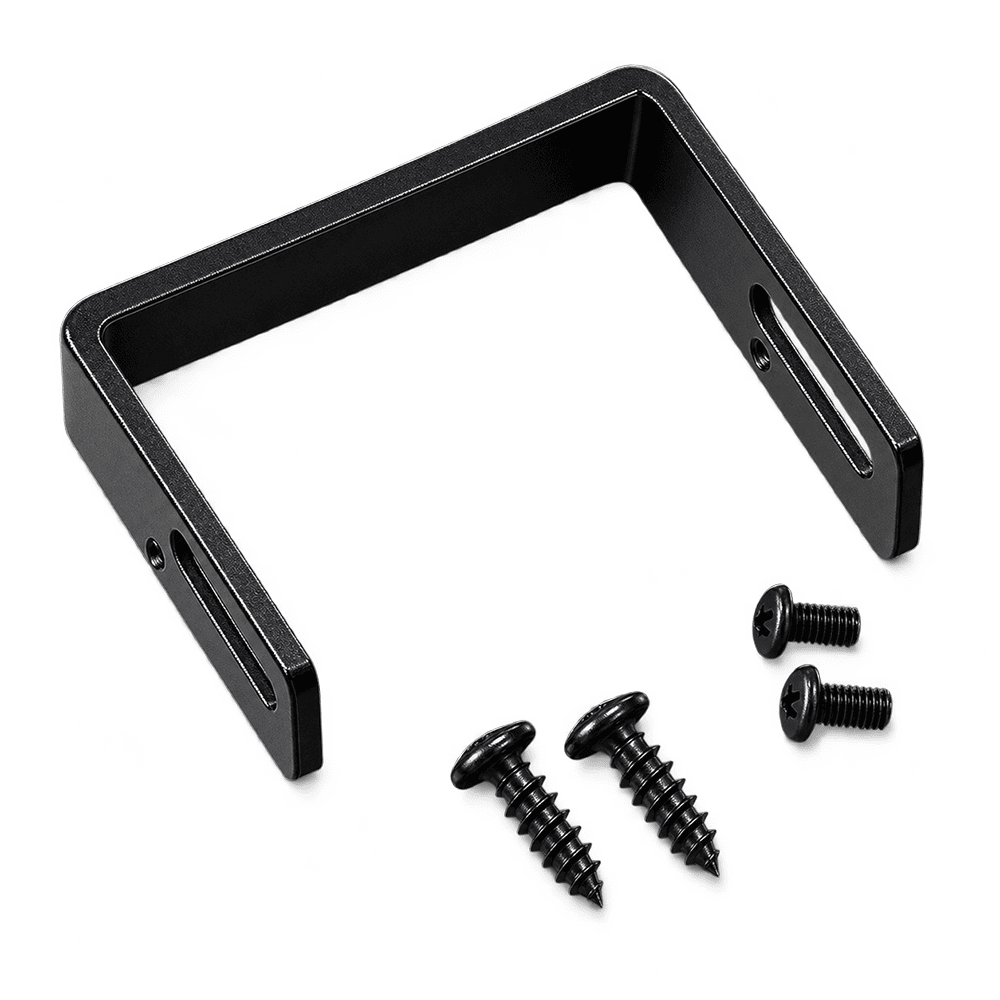

25mm Square Camera U-Bracket for Mini Cube Cameras
Secure and position a compatible miniature square camera with this 25mm Square Camera U-Bracket. Designed as a compact cradle for approximately 25mm x 25mm micro cube cameras, the three-sided metal bracket supports the camera between two side posts rather than attaching directly to the bottom of the camera body. This provides a simple, stable mounting solution while allowing the camera's vertical viewing angle to be adjusted during installation.
The bottom of this 25mm Camera Yoke Mount features a central 3.2mm clearance hole designed to pair with a compatible M3 mini camera stand. When used together, the U-bracket controls the camera's vertical tilt while the stand provides horizontal positioning, creating a compact and highly adjustable mounting system for compatible KT&C and other miniature square cameras.
Designed Around 25mm Square Cameras
With approximately 25.4mm (1 inch) of internal space between the side posts, this bracket is sized for compatible 25mm-wide square and cube camera housings.
The camera sits between the two arms of the bracket and attaches through the side mounting holes. Once positioned, the side fasteners can be tightened to hold the desired vertical viewing angle.
Add Adjustable Tilt to a Mini Camera
Unlike a fixed camera mount, the yoke-style design allows the camera to pivot between the two side posts. This makes it easy to fine-tune the vertical angle during installation rather than requiring the entire bracket to be repositioned.
Depending on the compatible camera, the side mounting points accommodate M2 or M2.5 fasteners.
Pair It with an M3 Mini Camera Stand
A 3.2mm center clearance hole in the bottom of the bracket allows it to be installed on a compatible mini camera stand using an M3 mounting screw.
When paired with the appropriate stand, the two components provide independent positioning:
- U-Bracket: Controls camera tilt
- Mini Stand: Provides horizontal pan and overall positioning
This combination creates a compact mounting assembly well suited to miniature cameras where a conventional CCTV bracket would be unnecessarily large.
Ideal Applications
- 25mm square security cameras
- KT&C micro cube cameras
- Miniature CCTV cameras
- Compatible pinhole camera housings
- Equipment monitoring
- ATM and kiosk camera integrations
- Industrial video systems
- OEM equipment
- Custom camera installations
- Space-restricted CCTV installations
Key Features
- U-shaped miniature camera bracket
- Designed for compatible 25mm square camera housings
- Approximately 25.4mm / 1" internal width
- Adjustable vertical camera tilt
- Side mounting points for compatible camera fasteners
- 3.2mm center clearance hole
- Compatible with appropriate M3 mini camera stands
- Compact metal construction
- Suitable for KT&C and other compatible micro cameras
- Can be combined with a mini stand for multi-axis positioning
Specifications
- Bracket Type: Square Camera U-Bracket / Yoke Mount
- Camera Size: Compatible 25mm x 25mm square/cube cameras
- Internal Width: Approximately 25.4mm / 1"
- Side Mounting Holes: Approximately 2.2–2.6mm
- Typical Side Fasteners: M2 or M2.5, depending on camera
- Bottom Center Hole: Approximately 3.2mm clearance hole
- Compatible Stand Screw: M3
- Adjustment: Vertical camera tilt
- Construction: Metal
Compatibility
Designed for compatible 25mm square and cube-style cameras, including applications using KT&C micro cameras and similar miniature CCTV housings.
Camera mounting-hole location and fastener size can vary between models. Verify your camera's dimensions and side mounting points before ordering.
What's Included
1 × 25mm Square Camera U-Bracket
Camera, mini stand, and mounting hardware are not included unless otherwise specified.
Build a Compact Adjustable Camera Mount
When a miniature square camera needs more positioning flexibility, this Square Camera U-Bracket provides a simple way to add adjustable tilt without surrounding the camera with a bulky housing or full-size CCTV mount. Pair it with a compatible M3 mini stand to create a compact mounting system that can be positioned for the viewing angle your installation requires.
