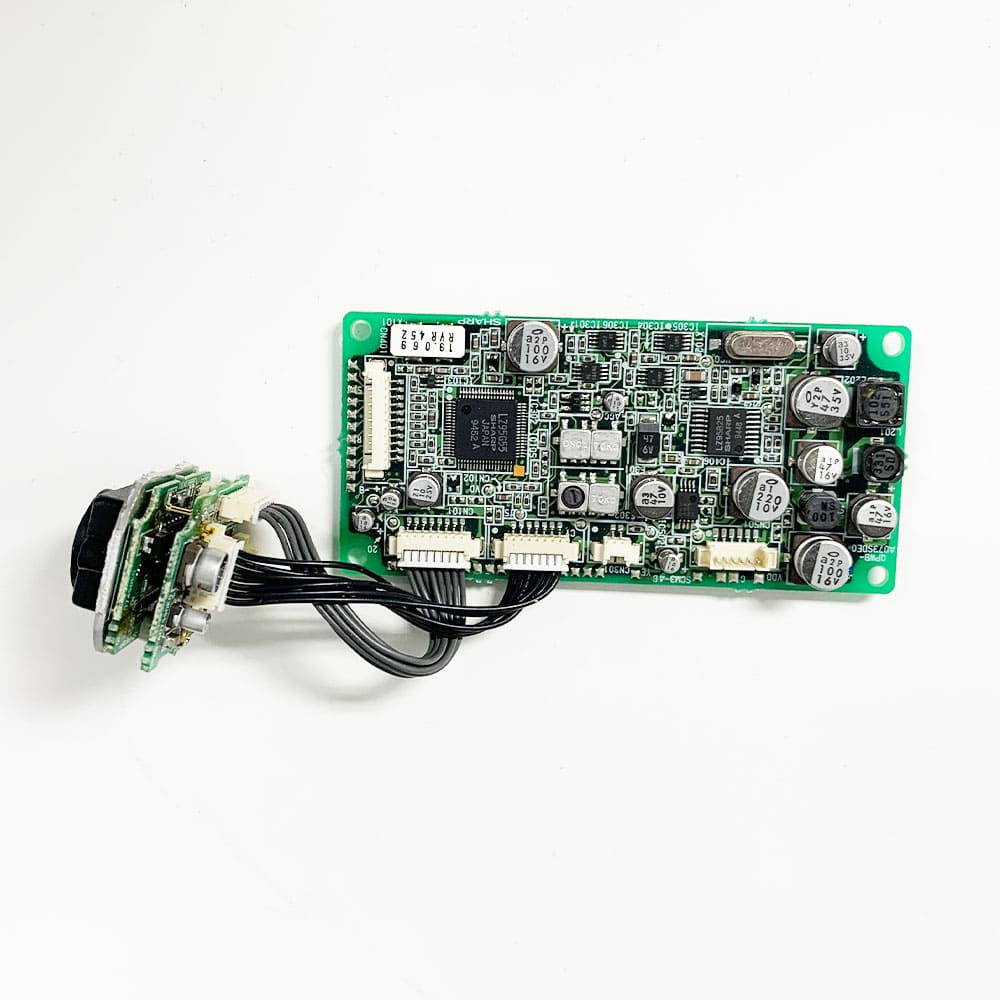

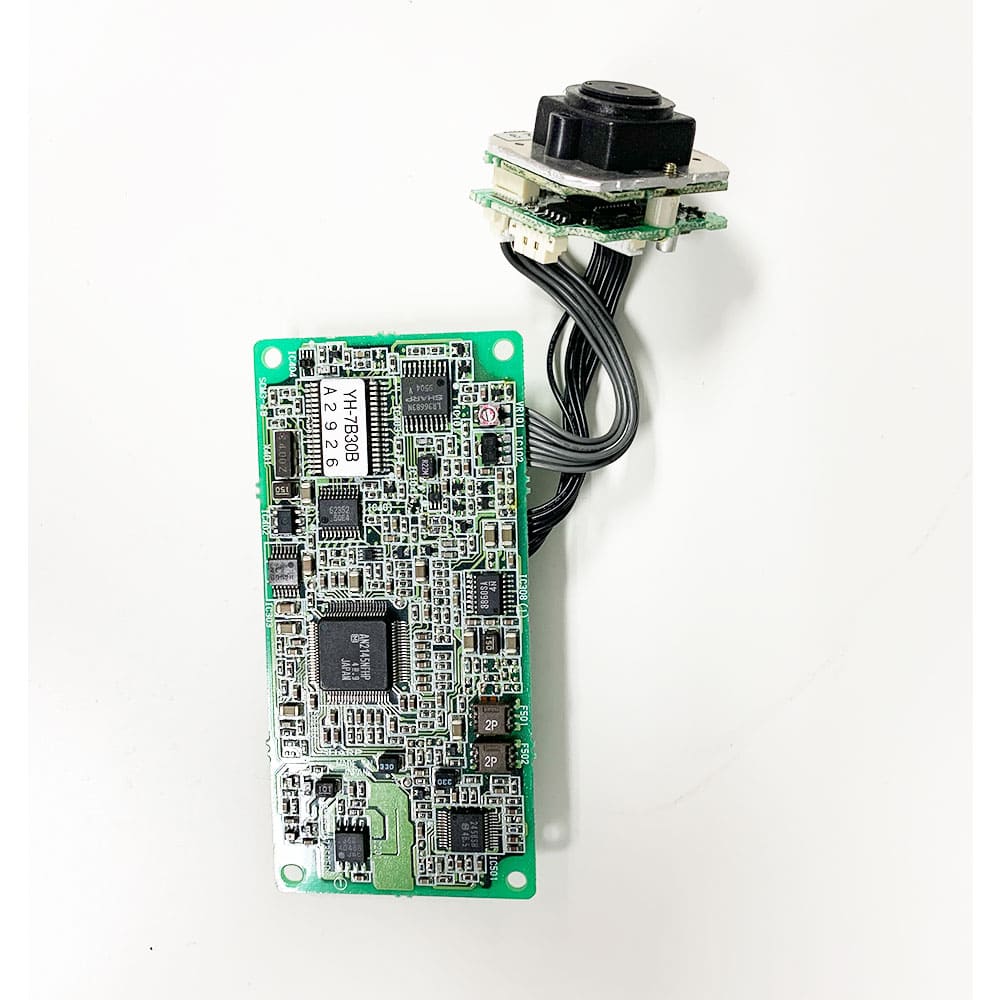

Sharp Analog Board Camera – Compact Japanese-Made Color Camera
Build the camera solution that fits your application with this Sharp Analog Board Camera, a compact Japanese-made color camera module designed for CCTV systems, equipment integration, electronics projects, and custom video applications. Delivering over 380 TVL resolution with standard composite video output, this small camera provides a straightforward and dependable platform for applications where you want control over how and where the camera is installed.
Available with either a traditional 3.8mm glass lens or compact 3.7mm pinhole lens, this Sharp Color Board Camera can be selected to match the physical requirements of your project. A third configuration adds a power/video harness with soldered connectors for easier integration. Because the camera operates on regulated 5V power and standard analog video, it can be incorporated into compatible systems without Wi-Fi, network configuration, apps, or cloud services.
Three Camera Configurations
3.8mm Glass Lens
A versatile choice for general camera installations, equipment monitoring, CCTV applications, prototypes, and custom enclosures.

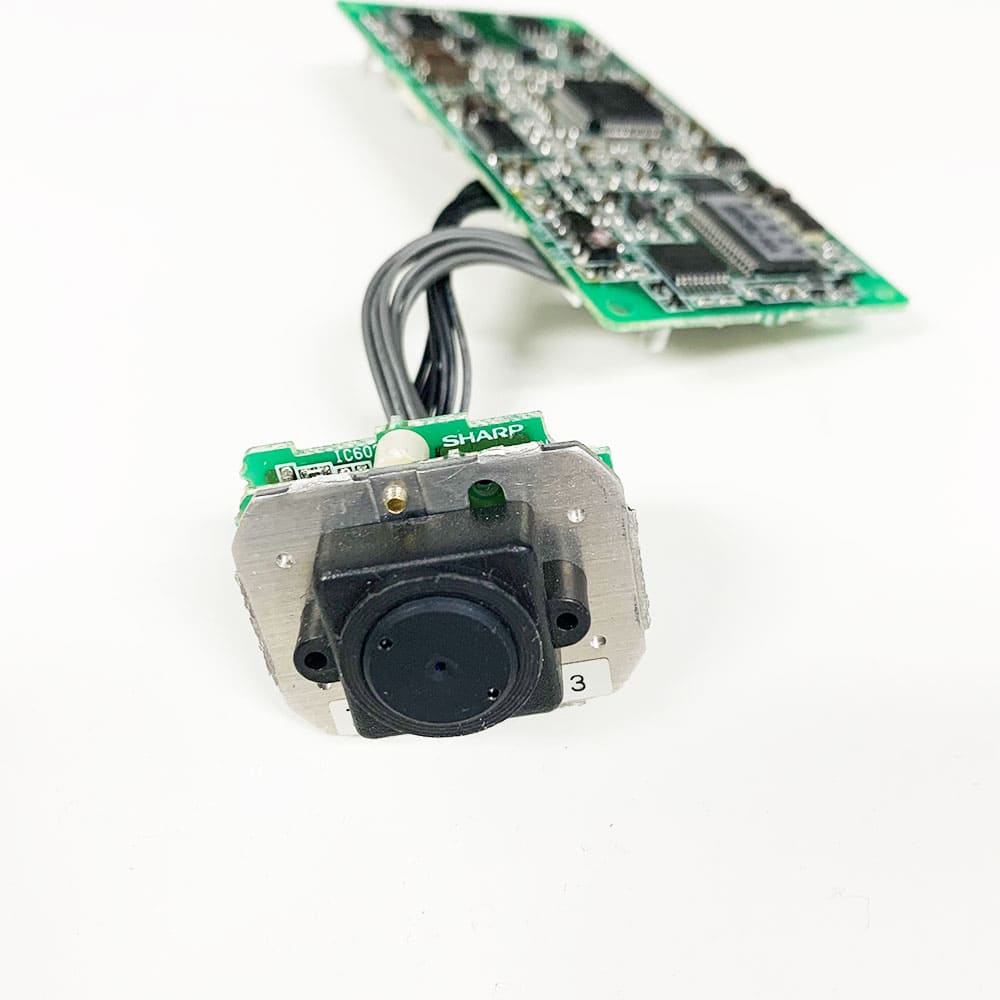

3.7mm Pinhole Lens
The smaller lens opening provides additional flexibility when integrating the camera into compact housings or applications where available lens space is limited.
3.7mm Pinhole Lens with Power/Video Harness & Soldered Connectors
Adds a prepared power and video harness with soldered connectors for projects where a more integration-ready camera configuration is preferred.
Build Around Your Application
A board camera gives you something a finished security camera cannot: control over the final installation. Instead of working around a predetermined housing or mounting system, you can incorporate the compact camera module into compatible equipment, custom enclosures, prototypes, monitoring systems, and other specialized applications.
Its analog composite video output also provides a direct connection to compatible DVRs, monitors, capture devices, and other analog video equipment. There is no network to configure and no cloud service required—the camera simply provides video to the equipment you choose.
Ideal Applications
- Analog CCTV systems
- Custom security integrations
- OEM and equipment integration
- Electronics prototyping
- Equipment and process monitoring
- CCTV and electronics training
- Research and development
- Custom camera enclosures
- Replacement camera projects
- Educational electronics projects
Key Features
- Genuine Sharp color board camera
- Made in Japan
- Compact board-level camera design
- Over 380 TVL analog video resolution
- Standard composite video output
- Built-in backlight compensation
- Regulated 5V operation
- Choice of 3.8mm glass or 3.7mm pinhole lens
- Power/video harness option available
- No Wi-Fi or internet connection required
- Suitable for CCTV, OEM and custom integrations
Specifications
- Manufacturer: Sharp
- Manufacturing Origin: Japan
- Camera Type: Color Analog Board Camera
- Horizontal Resolution: 380+ TVL
- Minimum Illumination: 2.0 Lux
- Video Output: Standard Composite Video
- Power Requirement: Regulated 5V DC
- Backlight Compensation: Built In
- Lens Options: 3.8mm Glass Lens or 3.7mm Pinhole Lens
- Power Supply: Not Included
Small Camera. More Freedom to Build.
Whether you're integrating video into existing equipment, developing a prototype, building a custom CCTV installation, or simply need a compact analog camera without a predetermined housing, this Sharp Analog Board Camera gives you the flexibility to create the solution around your application. Choose the lens and connection configuration that best fits your project and get proven Japanese-made Sharp imaging technology in a compact, integration-friendly format.
Note: Requires a compatible power supply and a video recorder with standard analog input. Clearance item – limited stock!
