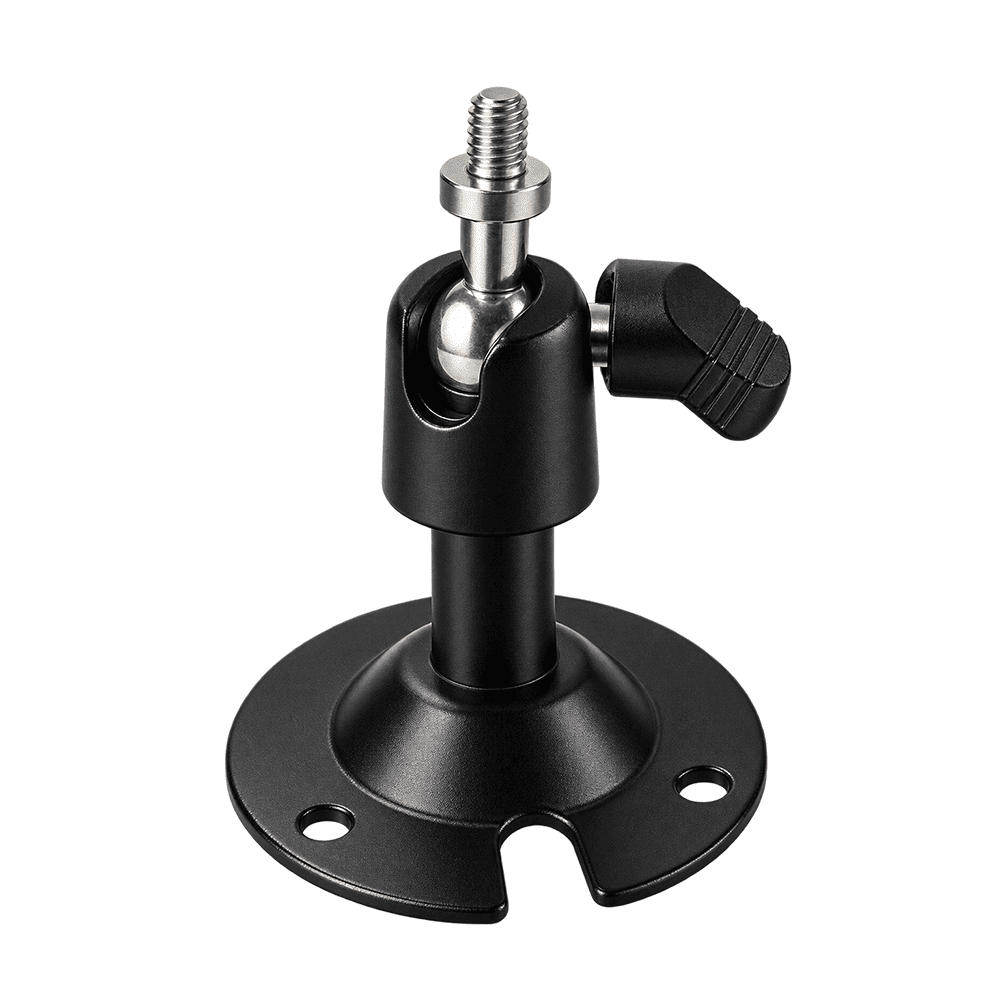

Mini Camera Mounting Bracket with M3 Ball Joint
Mount and precisely position a compact security camera without the bulk of a full-size CCTV bracket. This Mini Camera Mounting Bracket features an ultra-compact metal design with an M3-0.5 mounting screw specifically suited to compatible KT&C micro cameras, miniature bullet cameras, and other small camera housings that use the same metric mounting thread.
The adjustable ball-joint design provides up to 90° of vertical tilt and 360° horizontal rotation, giving you the flexibility to aim a compatible camera toward the exact area you need to monitor. With a base diameter of only 3.5cm and an adjustable overall height of approximately 35–45mm, this KT&C Micro Camera Mount is especially useful for space-restricted installations where a conventional security camera bracket would be unnecessarily large.
Compact Mount for Miniature Cameras
Small cameras deserve appropriately sized mounting hardware. The compact 35mm round base keeps the installation footprint to a minimum while providing a secure mounting point for compatible micro cameras.
Use it on walls, ceilings, equipment, enclosures, workstations, or other suitable surfaces where accurate camera positioning is required without a large mounting bracket dominating the installation.
Adjustable Ball-Joint Positioning
The integrated ball joint allows the camera position to be adjusted during installation. Tilt the camera vertically or rotate it horizontally to establish the desired viewing direction, then tighten the locking collar to hold the camera in position.
This makes the bracket particularly useful for installations where precise camera alignment matters.
M3-0.5 Camera Mounting Screw
Instead of the larger 1/4"-20 thread commonly found on photographic equipment, this miniature camera stand uses an M3-0.5 metric mounting screw designed for compatible micro-camera housings.
The exposed mounting screw provides approximately 4–5mm of usable thread for attaching a compatible camera.
Ideal Applications
- KT&C micro cameras
- Miniature bullet cameras
- Compact CCTV cameras
- Compatible board camera housings
- Equipment monitoring
- Industrial video systems
- Custom camera integrations
- Space-restricted camera installations
- Electronics and camera testing
- OEM equipment installations
Key Features
- Compact miniature CCTV camera bracket
- M3-0.5 metric camera mounting screw
- Adjustable ball-joint design
- Up to 90° vertical tilt
- 360° horizontal rotation
- Approximately 35–45mm overall adjustable height
- 35mm diameter round mounting base
- Metal construction
- Locking collar for securing camera position
- Two mounting holes in base
- Designed for compatible KT&C and other micro cameras
- Ideal for installations where space is limited
Specifications
- Bracket Type: Miniature Ball-Joint Camera Mount
- Camera Thread: M3-0.5 Metric
- Usable Camera Screw Length: Approximately 4–5mm
- Maximum Height: Approximately 45mm / 1.77"
- Minimum Height: Approximately 35mm / 1.38"
- Base Diameter: Approximately 30mm / 1.18"
- Vertical Adjustment: Up to 90°
- Horizontal Adjustment: 360°
- Construction: Metal
- Base Mounting Holes: 3 countersunk holes
- Finish: Black
Compatibility
Designed for KT&C micro cameras and other compatible miniature cameras using an M3-0.5 mounting thread.
Always verify the mounting thread on your camera before ordering. This bracket does not use the standard 1/4"-20 photographic tripod thread.
What's Included
1 × Mini Camera Mounting Bracket with M3-0.5 Camera Screw
Position a Small Camera Without a Full-Size Bracket
When your camera is measured in millimeters, a conventional CCTV mount can be excessive. This Mini Camera Mounting Bracket provides the compact footprint and precise positioning needed for compatible KT&C and other micro cameras, with a metal ball-joint design that lets you aim the camera and secure the viewing angle without taking up unnecessary installation space.
