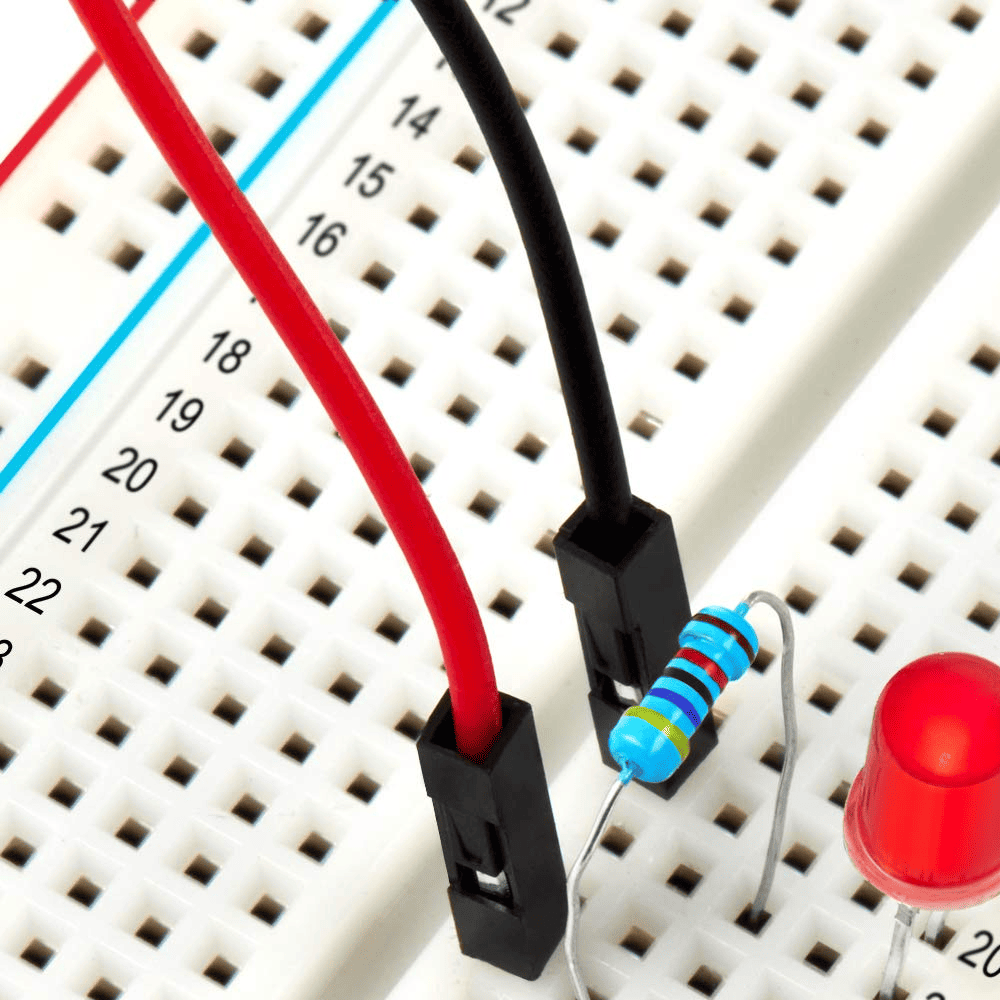

830 Tie Points Prototyping Board for Arduino & Raspberry Pi
Create, test, and prototype circuits effortlessly with the Solderless Electronic Breadboard — the essential platform for any electronics enthusiast, student, or engineer.
This 830-tie-point solderless breadboard features tight, nickel-plated spring contacts for stable and reliable connections without soldering. Its dual removable power rails and self-adhesive backing make setup quick and flexible, whether you’re building on a desk or inside an enclosure.
Multiple boards can be interconnected for larger projects, while precise 2.54mm spacing and 0.9mm hole diameters support standard jumper wires and components. Compatible with Arduino, Raspberry Pi, sensors, ICs, LEDs, transistors, and resistors, this board is perfect for IoT, robotics, and DIY electronics experiments.
Whether for classroom learning, maker projects, or rapid prototyping, this solderless breadboard kit ensures clean, efficient circuit assembly every time.
Key Features
- 830 tie-points with nickel-plated spring clips for firm connections
- Fully solderless design—reuse again and again
- Removable dual power rails for flexible power routing
- Self-adhesive backing for easy mounting
- Expandable design—connect multiple boards for larger circuits
- Compatible with Arduino, Raspberry Pi, and IoT projects
- Works with 20–29 AWG jumper or Dupont wires
- Rated up to 300V, <5A current

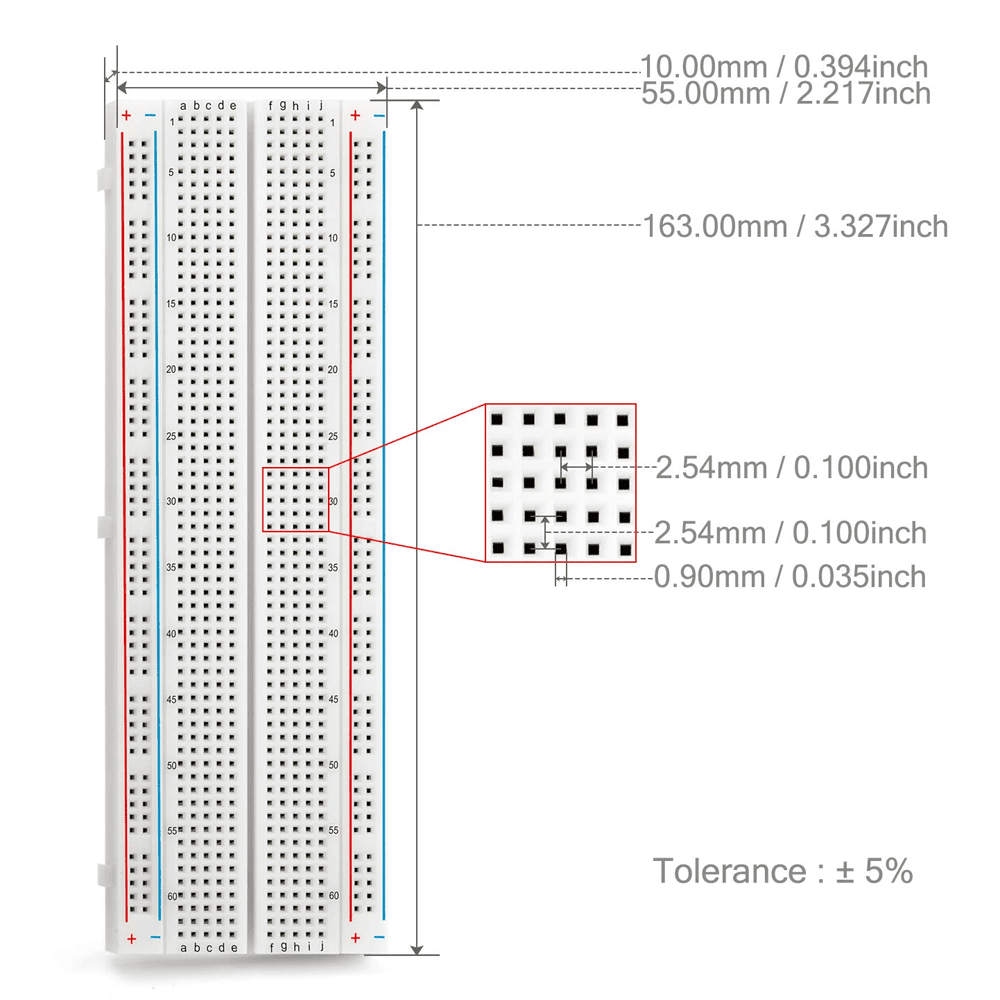

Technical Specifications
- Type: Solderless Breadboard
- Tie Points: 830
- Hole Diameter: 0.9 mm
- Hole Pitch: 2.54 mm (0.1 inch)
- Voltage Rating: 300V
- Current Rating: <5A
- Wire Compatibility: 20–29 AWG (0.3–0.8mm)
- Dimensions: 16.5cm × 5.5cm × 1cm
- Color: White
- Power Rails: 2 removable sides
- Back: Self-adhesive tape
Package Includes:
1x 830-point breadboard
