Description

Ultra Low Lux Genwac Camera - keep your integration working longer.

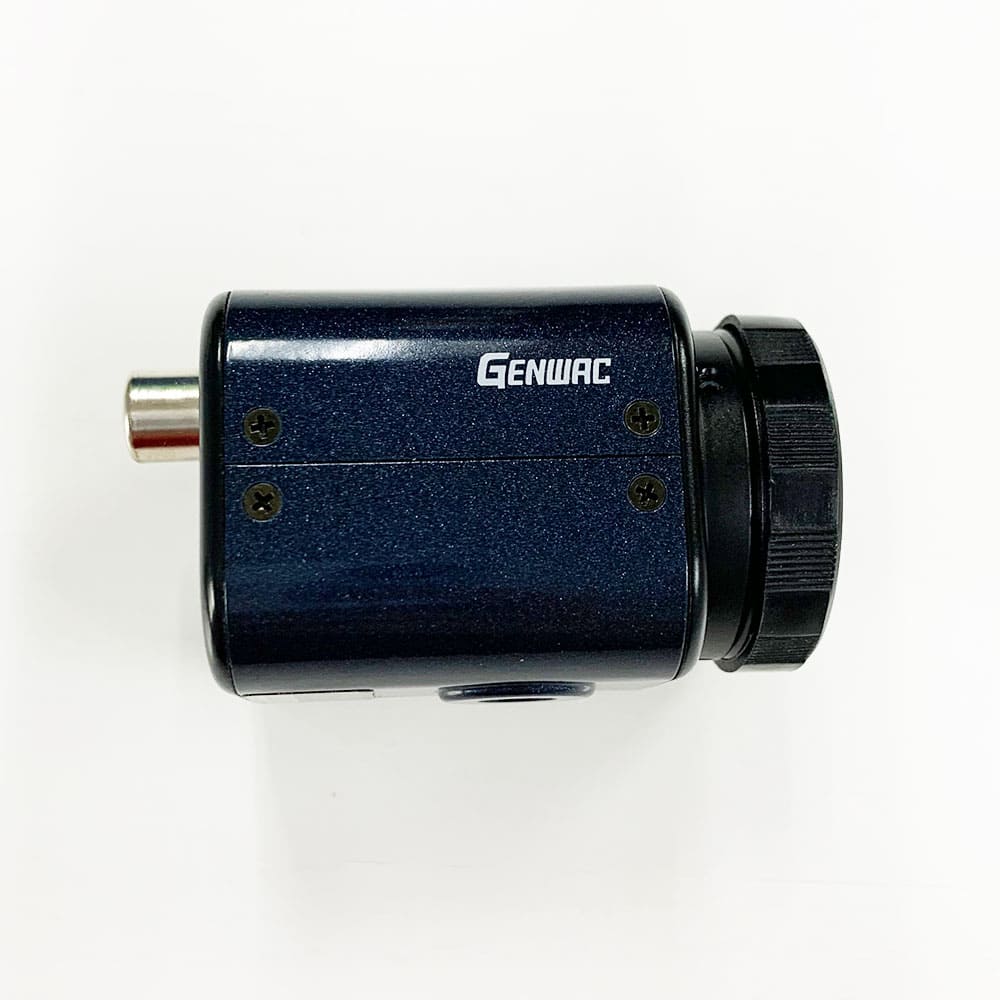

This original GW-902H Genwac camera made by Watec performs under super low lux conditions. The 1/3 inch CCD Japanese camera offers supreme reliability and is highly compatible with a variety of machine vision integrations particularly for the healthcare sector.

Not only for integrators, this CCTV professional camera is preferred by installers around the country for security and surveillance solutions that need great performance in very low light conditions.

Near-infrared lux sensitivity of 0.0005 at F1.4 makes the WAT-902H3 Supreme the perfect camera for night surveillance and extreme low light environment security and surveillance.


1/3" Ultra Low Light Monochrome CCD Camera Overview:

  • Approx. 2.5 times more sensitive in the visible ray wavelength.
  • Approx. 3 times more sensitive (940nm) in the near-infrared wavelength.
  • Smear can be reduced by approx. -10dB.

  • Using an infrared beam (700nm~950nm) an object can be monitored in darkness. High resolutions of 380K (EIA) 440K (CCIR) pixels (570 horizontal TV lines).

    GW-902H3 CCTV Camera Features:

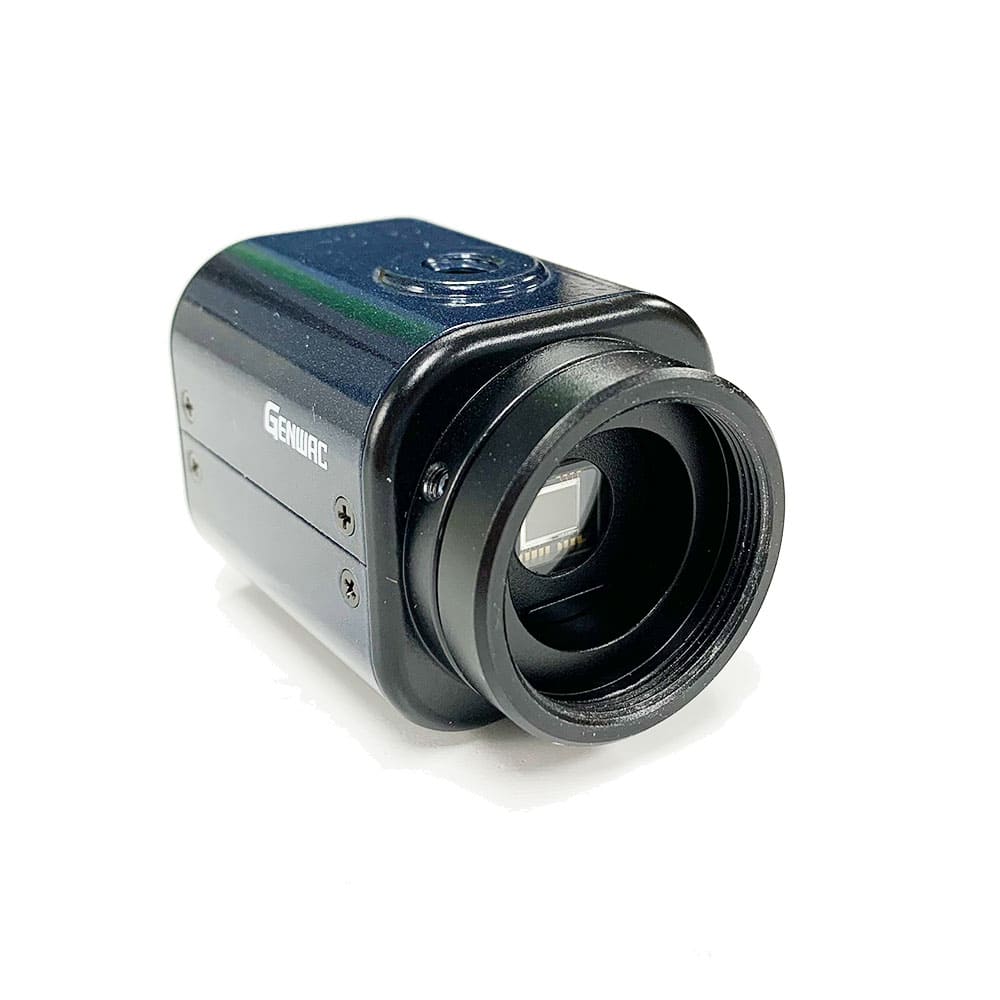

  • CS lens mount
  • Super High sensitivity(Near IR spectrum) 0.0005 Lux at F1.4

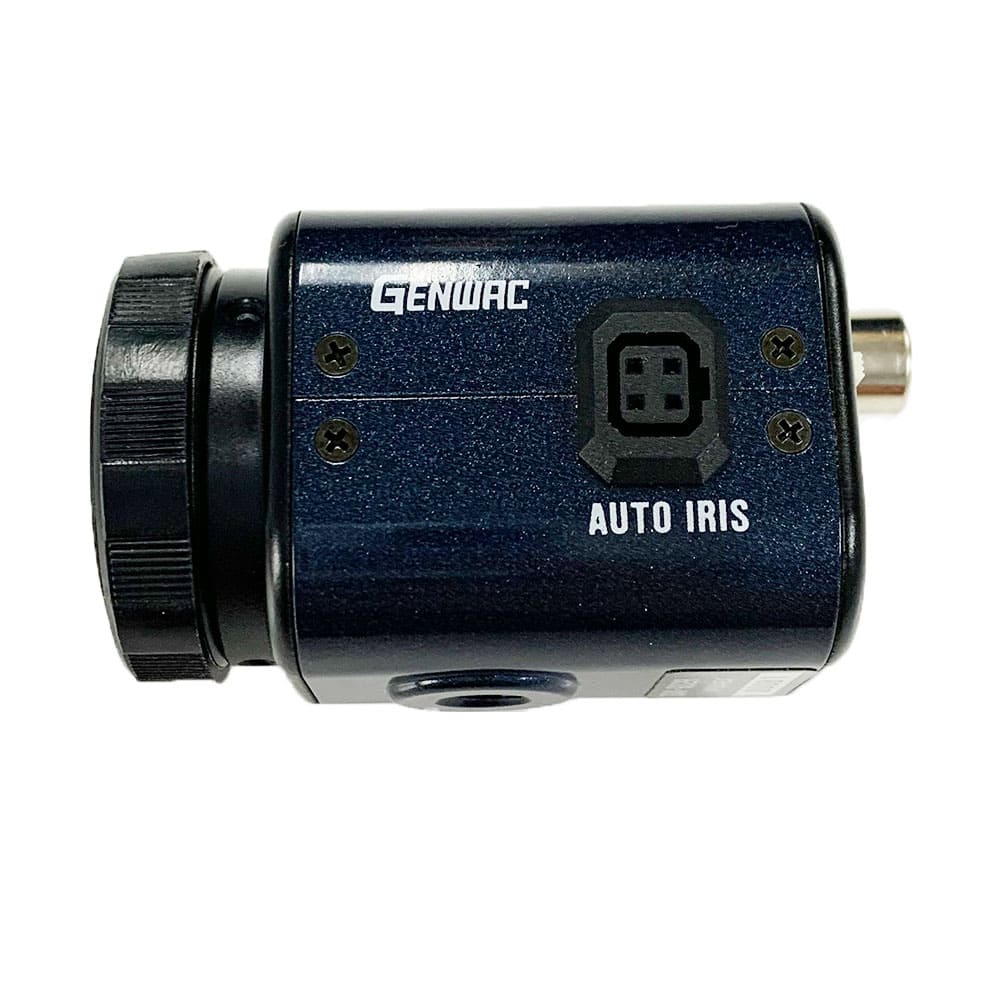

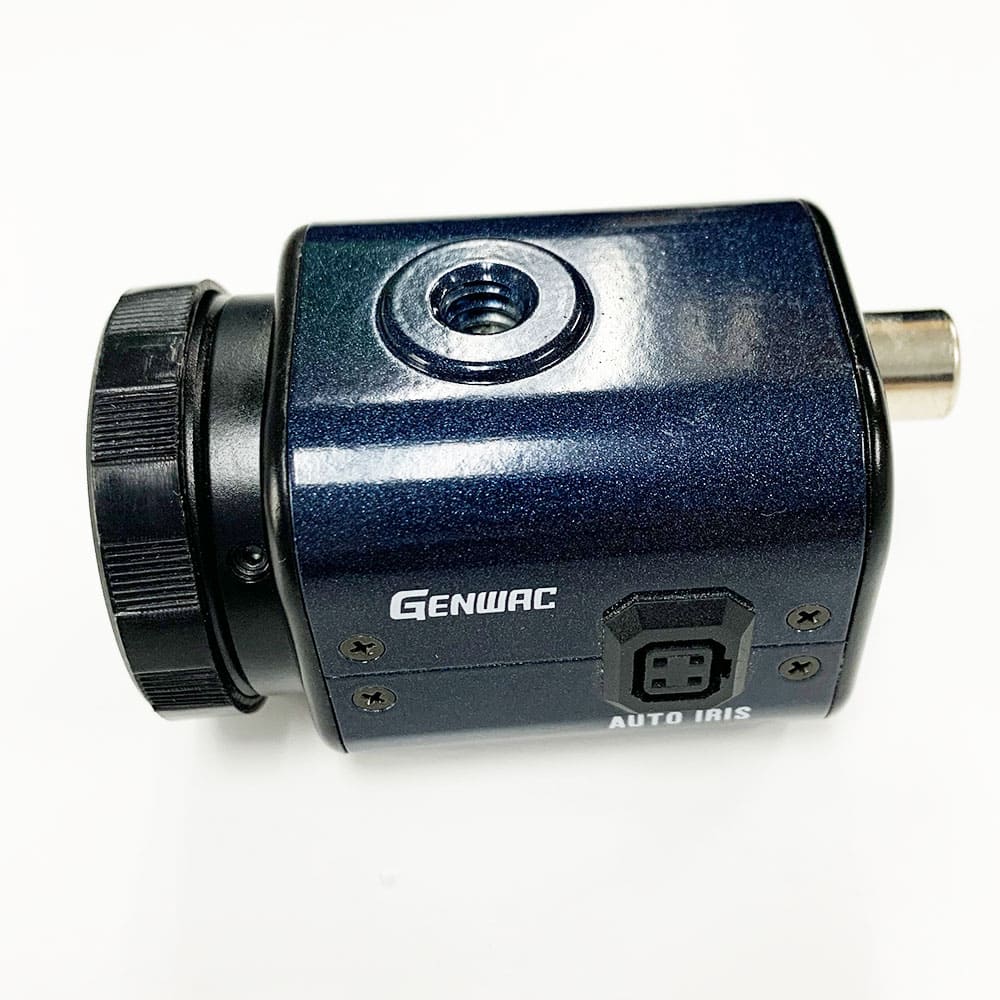

  • Auto-Select DC / Video Auto Iris.

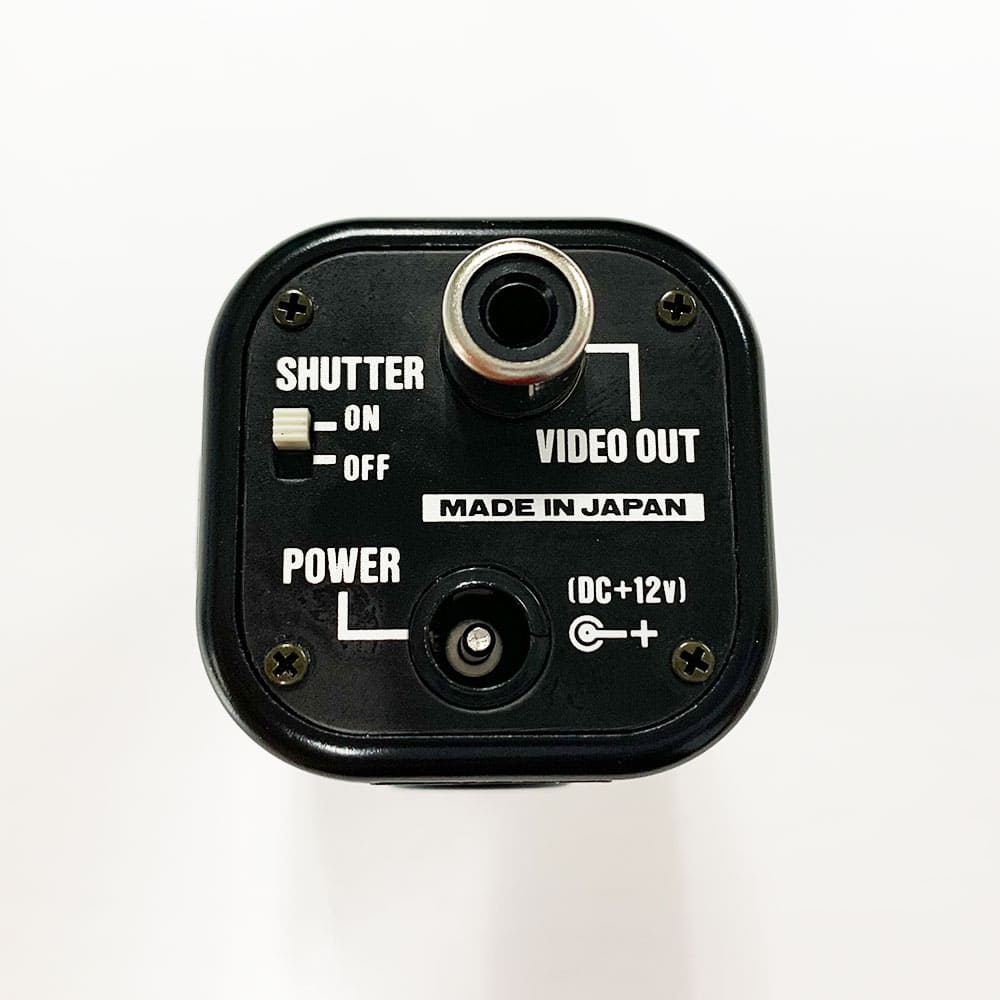

  • BNC Video Connector (Replaces RCA Video Connector).
  • Flickerlesss mode
  • Shutter speed control EI(1/60(E) or 1/50(C)-1/100,000), FL, OFF
  • Electronic iris
  • AGC (HI:5-50dB, LO:5-32dB)
  • Back light compensation
  • S/N ratio: 46dB
  • Pick-up element ½ inch. Interline transfer CCD image sensor
  • Number of effective pixels: EIA: 768(H)*494(V) CCIR: 752(H)*582(V)
  • Dimensions(m/m) 35.5mm.(w) x 36.0mm.(h) x 63.0mm.(d)
  • Weight: approx. 90 grams


  • **Doesn't include lens or power supply. For full functionality it requires: AD-901(Power supply) WPDC12 (DC plug) AIC (Iris plug).



    Important Notes:

    This camera is available only in EIA (USA) format.

    This is a clearance item. Only Used quantities are available for this camera.

    Cameras are sold as is, some cosmetic flaw is possible but not necessarily present on USED cameras as they were previously used for demonstrations. All used items are tested before shipping so you never get DOA units.

    Support
    Free support for this item is included with your purchase. If you already purchased this item and need help, contact us for assistance.

    1/3" Machine Vision B&W Genwac CCD Camera - High Quality Japanese CCTV Camera

    Regular price $ 219.00

    Shipping calculated at checkout

    GW-902H3
