Automatic 4 Channel Audio & Video Switcher - CCTV - CLEARANCE

Ask a Question

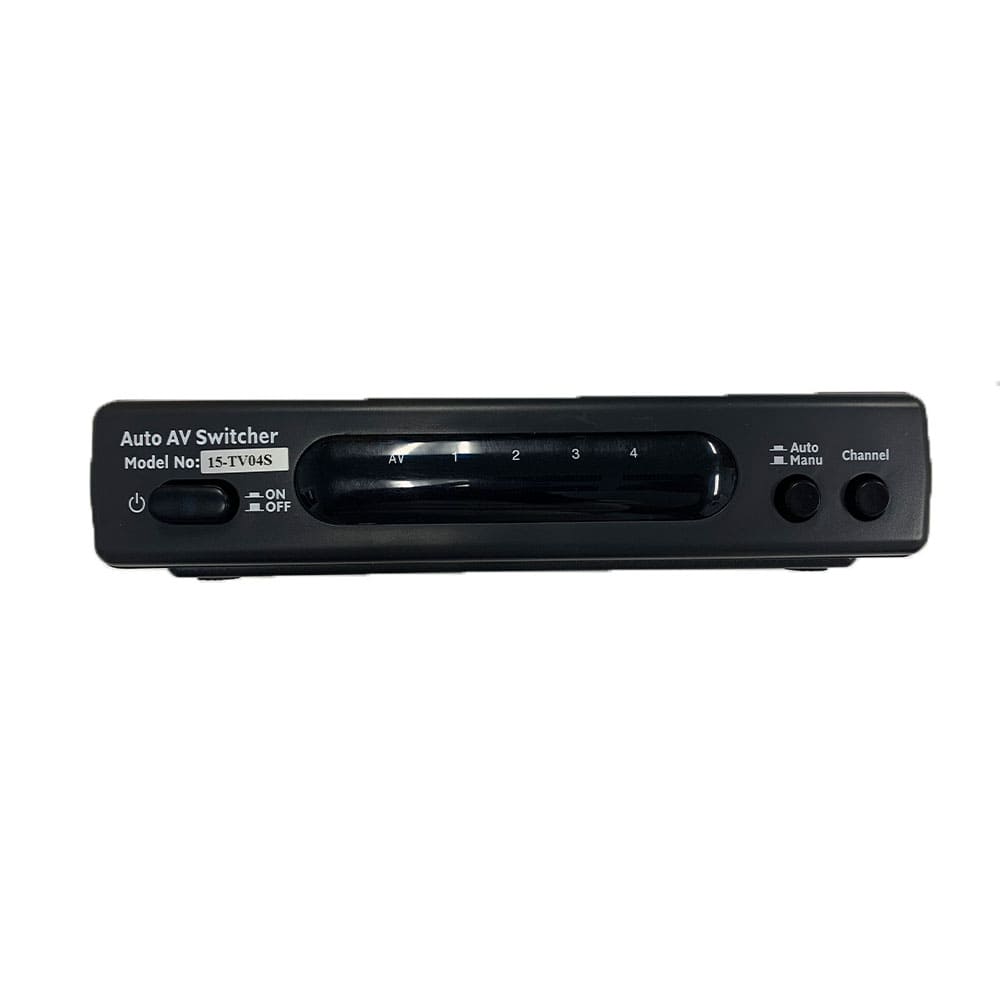

Automatic 4 Channel Audio & Video Switcher - CCTV

Ideal for security workstations, businesses and guardhouses. Standard RCA video inputs allows up to 4 CCTV security cameras and up to 4 microphones or sound sources to be looped in to manage which camera is viewed when. Two standard RCA video outputs are included to allow for dual monitor view or monitor and recorder input.

A great way to focus on a most active camera while still being able to switch other cameras with a simple switch. Supports automatic switching so is easy to keep an eye on every one of your camera zones. You can even customize the speed of the switch from 0.5-30 second intervals.

CCTV Camera and Sound Switcher Features:

  • Supports B&W and Color cameras
  • Auto or manual switch
  • Auto gain control
  • Adjustable switch timing 0.5-30 seconds
  • Video Input: 0.8~1.2 Vp-p, 75 OHM, 4 Inputs
  • Audio Input: 0~2 Vp-p, 4 Inputs
  • Video Output: 1.0 Vp-p, 75 OHM, 2 outputs
  • Audio Output: 2.0 Vp-p, 75 OHM, 2 outputs
  • Video Bandwidth: 5 MHZ
  • Audio Bandwidth: 20Hz~20KHz
  • Power Consumption: 100mA
  • Power Supply: 12Volt DC
  • Dimensions: 196 x 130 x 40 mm
  • Manufacturer Model: 15-TV04S
